H-beam Steel stucture

Introduction:

H-beam Steel Structure is a popular building material for its flexibility in design, high strength, customizable size and shape. Additionally, it is a cost-efficient alternative to traditional building materials given its durability and ease of installation. The product has now reached new heights of popularity due to its versatility in applications, increased demand for eco-friendly construction materials and preference for efficient construction.

Features and Benefits:

The H-beam Steel Structure is made from high-quality steel material that produces a product with greater resistance to bending and torsional forces. The H-shaped cross-section of the beam is designed to provide greater strength-to-weight ratio to support heavy loads, making it ideal for building projects like bridges, buildings, and other infrastructures. The following are some of the features and benefits of the H-beam Steel Structure:

1. Strength and Durability:

The H-beam Steel Structure has inherent strength and durability, which makes it ideal for construction. It can withstand harsh weather conditions, extreme temperatures, fire and other natural calamities. It has a long service life and requires minimal maintenance, making it cost-effective.

2. Customizable size and shape:

One of the significant advantages of the H-beam Steel Structure is that it can be customized to different sizes and shapes, based on the requirements of the project. Its versatility in design allows architects and builders to create complex structures.

3. Easy to install:

Installing H-beam Steel Structures is easy and requires minimal labor. Its prefabricated components alleviate the need for on-site manufacturing, reducing noise pollution and other environmental concerns.

4. Cost-effective:

H-beam Steel Structures are cost-efficient compared to other building materials, making it the preferred choice for large-scale construction projects. It reduces construction time, which means fewer labor costs and material waste, reducing the overall construction cost.

Applications:

The H-beam Steel Structure is a versatile product that can be used in various applications. Below are some of the sectors that use H-beam Steel Structures:

1. Industrial sector:

H-beam Steel Structures are used to build factory buildings, warehouses, and other industrial facilities. The beams are ideal for large spaces that require strength, durability and are fire-resistant.

2. Infrastructure sector:

H-beam Steel Structures are used to build bridges, highways, airports, and other infrastructures. The structures are strong enough to handle heavy traffic and provide support to the infrastructure.

3. Commercial sector:

H-beam Steel Structures are used to build commercial buildings like shopping malls and high-end offices. The construction is cost-effective, which means the initial investment is low.

4. Residential sector:

H-beam Steel Structures are used to build residential houses. The steel structure provides greater strength and stability, which means the building can withstand severe weather conditions.

Conclusion:

The H-beam Steel Structure is a versatile and cost-effective material that is highly suitable for construction. Its durability, strength, and customisable size make it a preferred choice for large-scale construction projects. The product is eco-friendly and reduces construction waste, which aligns with the global trend towards sustainable development. With its numerous benefits and applications, H-beam Steel Structures are a perfect fit for merchants looking for the best quality material to drive their construction projects forward.

Name: H-beam
Standard: JIS G 3192-2006
Grade: JIS G3101 SS400

HEA&HEB Beams Example Size



HEA Beams Sizes, and Mechanical Properties





HEA Beams Sizes					Weight (kg/m)	Sectional Area (cm2)
b	h	a	e	r
HEA 100	96	5,0	8,0	12	16,7	21,24
HEA 120	114	5,0	8,0	12	19,9	25,34
HEA 140	133	5,5	8,5	12	24,7	31,42
HEA 160	152	6,0	9,0	15	30,4	38,77
HEA 180	171	6,0	9,5	15	35,5	45,25
HEA 200	190	6,5	10,0	18	42,3	53,83
HEA 220	210	7,0	11,0	18	50,5	64,34
HEA 240	230	7,5	12,0	21	60,3	76,84
HEA 260	250	7,5	12,5	24	68,2	86,82
HEA 280	270	8,0	13,0	24	76,4	97,26
HEA 300	290	8,5	14,0	27	88,3	112,5
HEA 300	310	9,0	15,5	27	97,6	124,4
HEA 300	330	9,5	16,5	27	105,0	133,5
HEA 300	350	10,0	17,5	27	112,0	142,8
HEA 300	390	11,0	19,0	27	125,0	159,0
HEA 300	440	11,5	21,0	27	140,0	178,0
HEA 300	490	12,0	23,0	27	155,0	197,5
HEA 300	540	12,5	24,0	27	166,0	211,8
HEA 300	590	13,0	25,0	27	178,0	226,5
HEA 300	640	13,5	26,0	27	190,0	241,6
HEA 300	690	14,5	27,0	27	204,0	260,5
HEA 300	790	15,0	28,0	30	224,0	285,8
HEA 300	890	16,0	30,0	30	252,0	320,5
HEA 300	990	16,5	31,0	30	272,0	346,8

HEB Beams Sizes, and Mechanical Properties





HEB Beam Sizes					Weight (kg/m)	Sectional Area (cm2)
b	h	a	e	r
HEB 100	100	6,0	10,0	12	20,4	26,04
HEB 120	120	6,5	11,0	12	26,7	34,01
HEB 140	140	7,0	12,0	12	33,7	42,96
HEB 160	160	8,0	13,0	15	42,6	54,25
HEB 180	180	8,5	14,0	15	51,2	65,25
HEB 200	200	9,0	15,0	18	61,3	78,08
HEB 220	220	9,5	16,0	18	71,5	91,04
HEB 240	240	10,0	17,0	21	83,2	106,0
HEB 260	260	10,0	17,5	24	93,0	118,4
HEB 280	280	10,5	18,0	24	103,0	131,4
HEB 300	300	11,0	19,0	27	117,0	149,1
HEB 300	320	11,5	20,5	27	127,0	161,3
HEB 300	340	12,0	21,5	27	134,0	170,9
HEB 300	360	12,5	22,5	27	142,0	180,6
HEB 300	400	13,5	24,0	27	155,0	197,8
HEB 300	450	14,0	26,0	27	171,0	218,0
HEB 300	500	14,5	28,0	27	187,0	238,6
HEB 300	550	15,0	29,0	27	199,0	254,1
HEB 300	600	15,5	30,0	27	212,0	270,0
HEB 300	650	16,0	31,0	27	225,0	286,3
HEB 300	700	17,0	32,0	27	241,0	306,4
HEB 300	800	17,5	33,0	30	262,0	334,2
HEB 300	900	18,5	35,0	30	291,0	371,3
HEB 300	###	19,0	36,0	30	314,0	400,0

Products Description

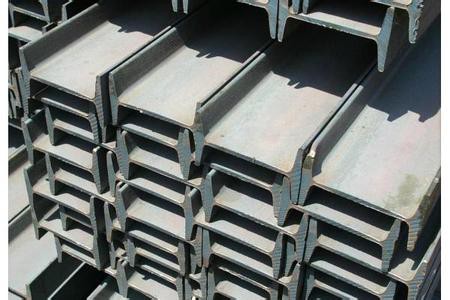

The cross-sectional shape is similar to an economical cross-section profile of the capital Latin letter H, also known as universal steel beam.The cross-section of H-shaped steel usually includes two parts, the web and the flange, also known as the waist and the edge.

H beam is widely used, mainly used in: various civil and industrial building structures; various large-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; requiring large bearing capacity and cross-section Large bridges with good stability and large spans; heavy equipment; highways; ship skeletons; mine support; foundation treatment and dam engineering; various machine components.







---





Your advantages with BAOLAI® HEA & HEB Beam





• -Strong bending resistance
• -Easy to construct
• -Lower cost， cut down your expenses
• -Lightweight structure





Our Advantages

1

Quality assurance

2

Price advantage

3

Factory wholesale

4

Premium service



SHIPMENT AND LOADING  Tel：+86 2228352066



Processing Services:

· √OEM & ODM

· √Protective Coatings

· √Saw and Flame Cutting

· √Beveling, Threading and Grooving

·√ For more information, please contact our service team.

More than a manufacturer, we provide a one-stop solution for your business. Get in touch now!
